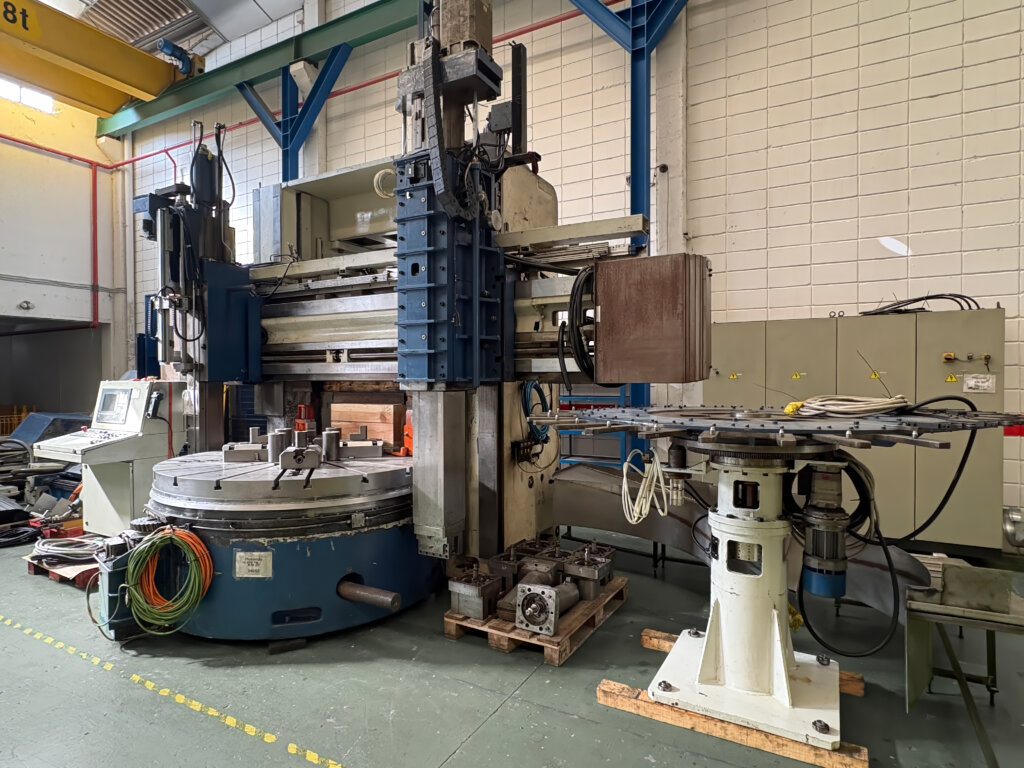

CNC Vertical Lathe MORANDO KN-20 Ø 2.000mm

Ref: 3886
CNC Vertical Lathe MORANDO KN-20  Ø 2.000mm
Technical Details
Capacity
Max turning diameter mm 2.200
Chuck diameter mm 2.000
Max. turning height mm 1.200
Vertical travel carriage mm 600
RPM (3 ranges) rpm Hasta 160 rpm
Rapid Feed mm/min 8.000
Loading capacity   Tn 12
Motor
Main motor    Kw 60
Equipament
Automatic tool changer 20 pos
Several tools
Notes
Machine with C axis and motor tools.

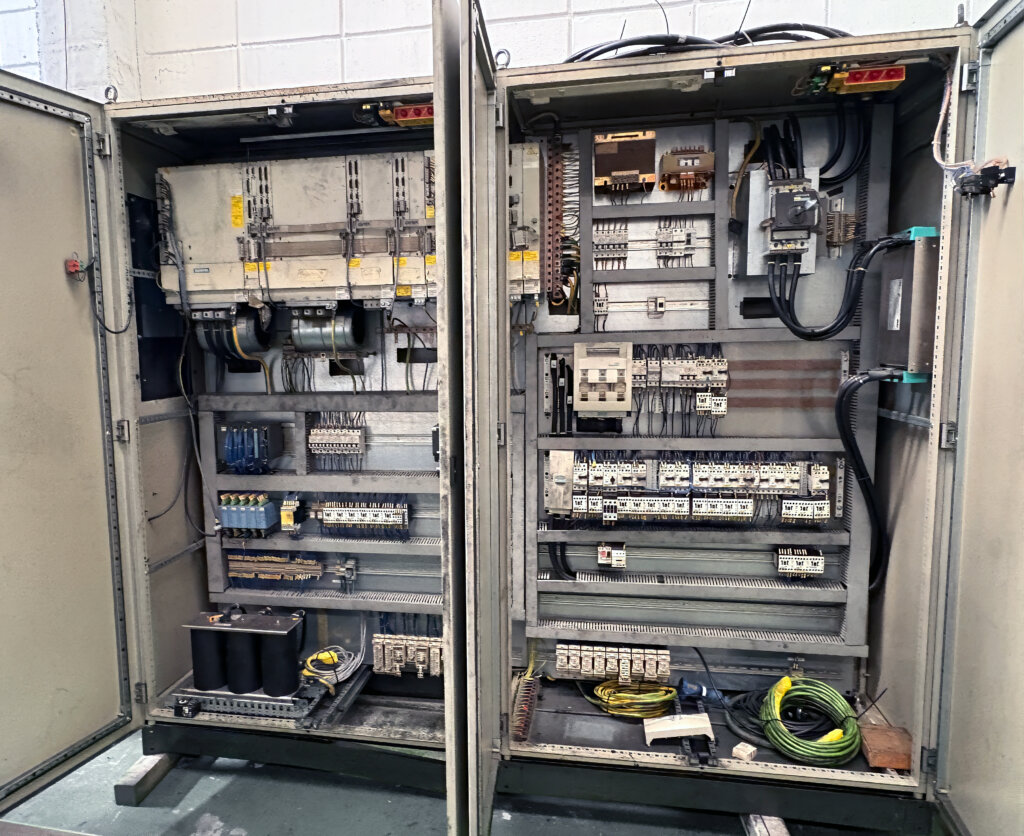

CNC SIEMENS
