| Technical features |
| Dimensions | ||
| Max. swing over floor | mm | 3.000 |
| Máx. swing in gap | mm | 5.000 |
| Distance between centres | mm | 6.000 |
| Bed travel transversal way | mm | 700 |
| Max. piece weight to 300 mm of the chuck | Kg | 3.500 |
| Max. Piece weight between centres, without steady rest | Kg | 5.000 |
| Max. Piece weight | Kg | 10.000 |
| Head | ||
| 4-jaws independent chuck | mm | 2.000 mm |
| Spindle nose | – | ASA A-1-11” |
| Number of speeds | – | 24 (2 gamas) |
| Speed rango | Rpm | 3-200 |
| Main motor | CV | 25 ( with frequency inverter ) |
| Tailstock | ||
| Quill diameter | mm | 200 |
| Quill inside taper | – | Morse 6 |
| Quill stroke | mm | 200 |
| Tailstock travel | mm | 1.500 |
| The tailstock has its own independent guides | ||
| Equipment | |
| Automatic turret Barrufaldi (vertical axis) TAN 265 | 4 positions |
| Independent lubrication center | INCLUDED |
| Manual wheel Fagor HBA | INCLUDED |
| Remarks | |
| CE Norm | |

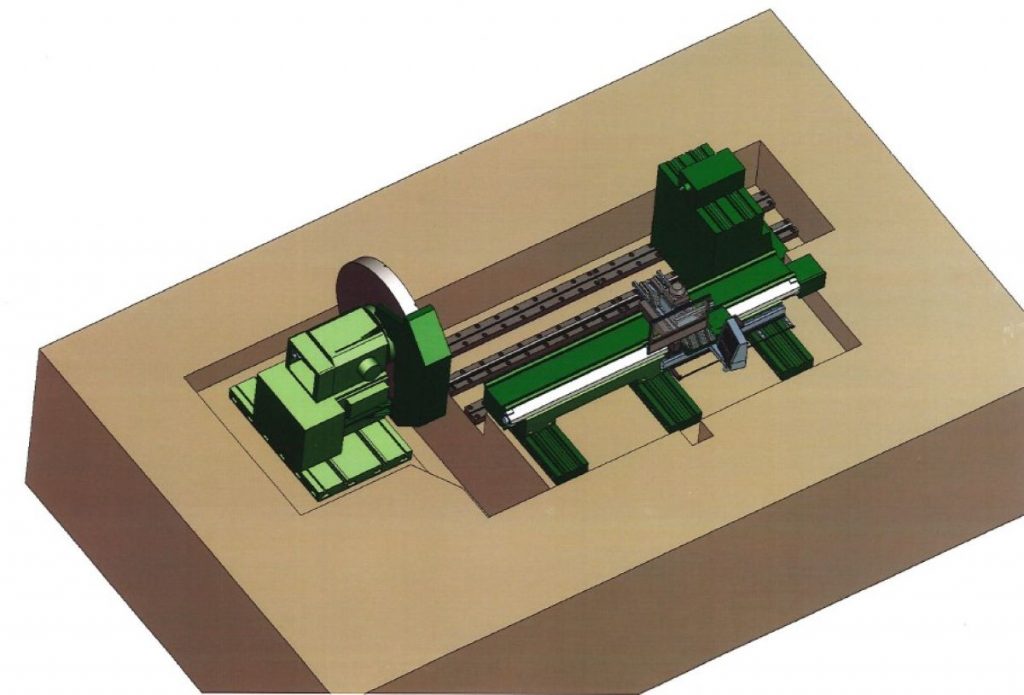

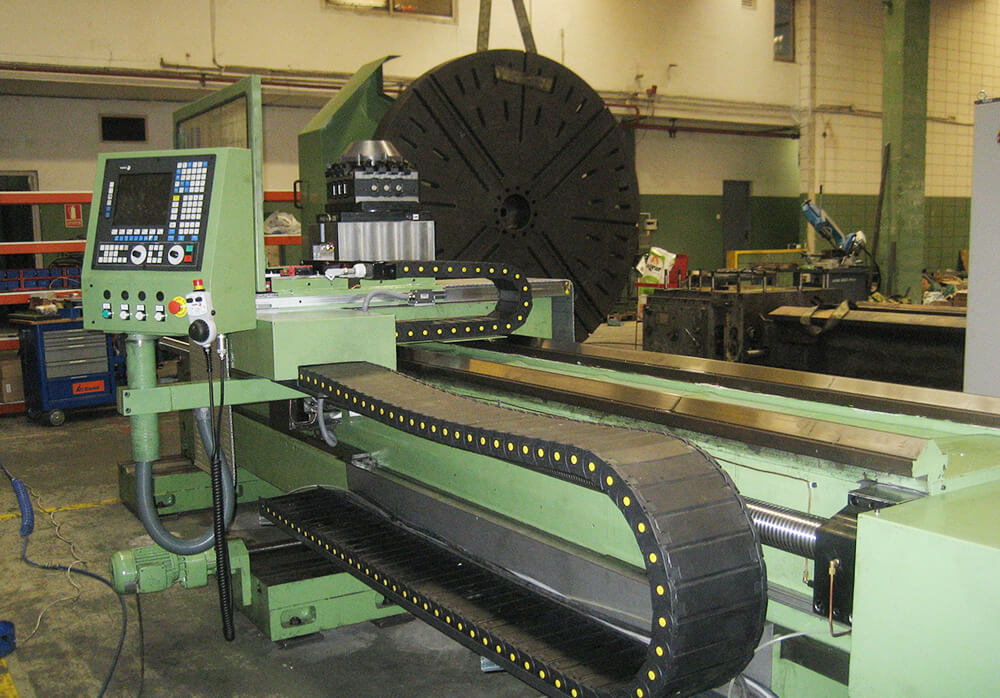

Facing lathe with travelling carriage TADU LR-BL used, retrofitted in 2008.
This facing lathe is equipped with a 2,000 mm diameter, 4 independent jaws chuck and CNC Fagor 8055. As additional equipment, it has a Barufaldi TAN 265 4-position automatic turret and a Fagor HBA manual handwheel.
Second-hand facing lathe with CE norm.
Available for immediate delivery. Transport and assembly facilities. We have our own technical service.
If you are looking for a second-hand vertical lathe, contact us. We will take note of your request and offer you a machine that suits your needs at the best price. Request a quote!
