Floor type horizontal boring mill Tos Varnsdorf WRD 150Q

Ref: 3745

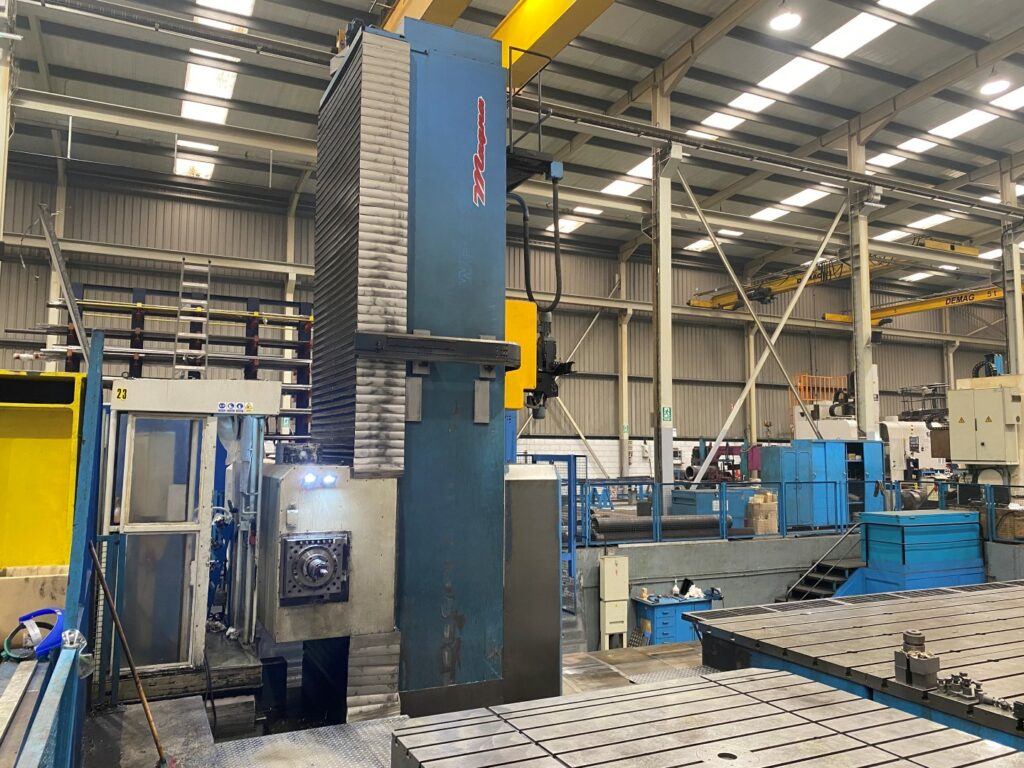

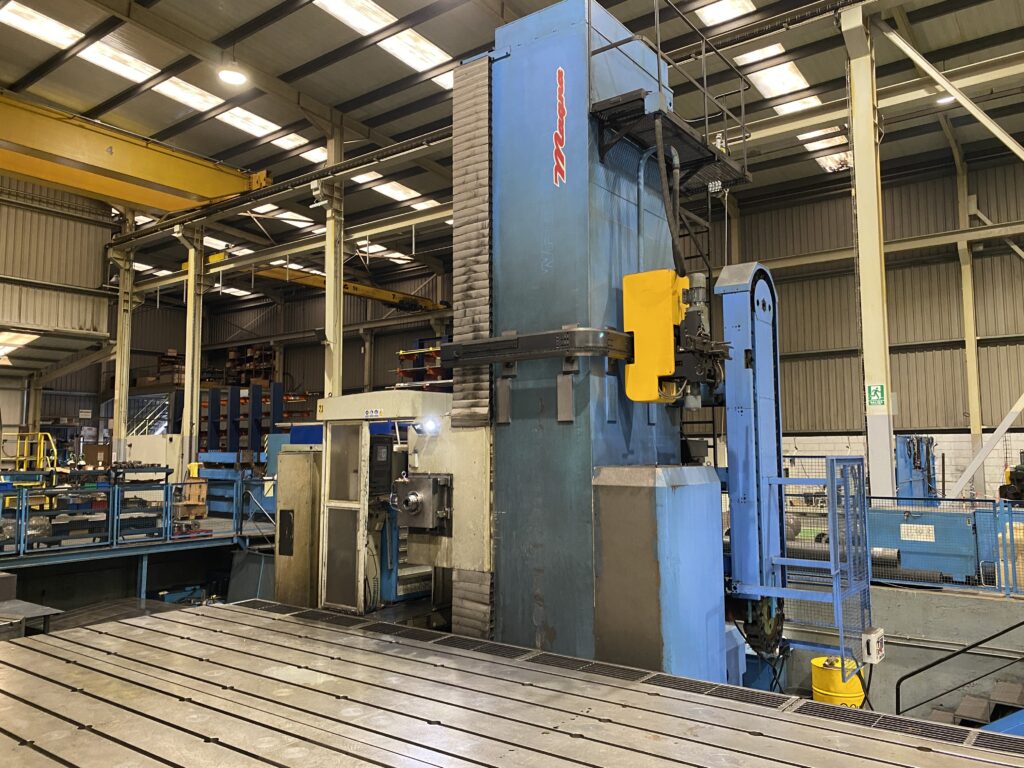

Floor type horizontal boring mill Tos Varnsdorf WRD 150Q
Technical Details

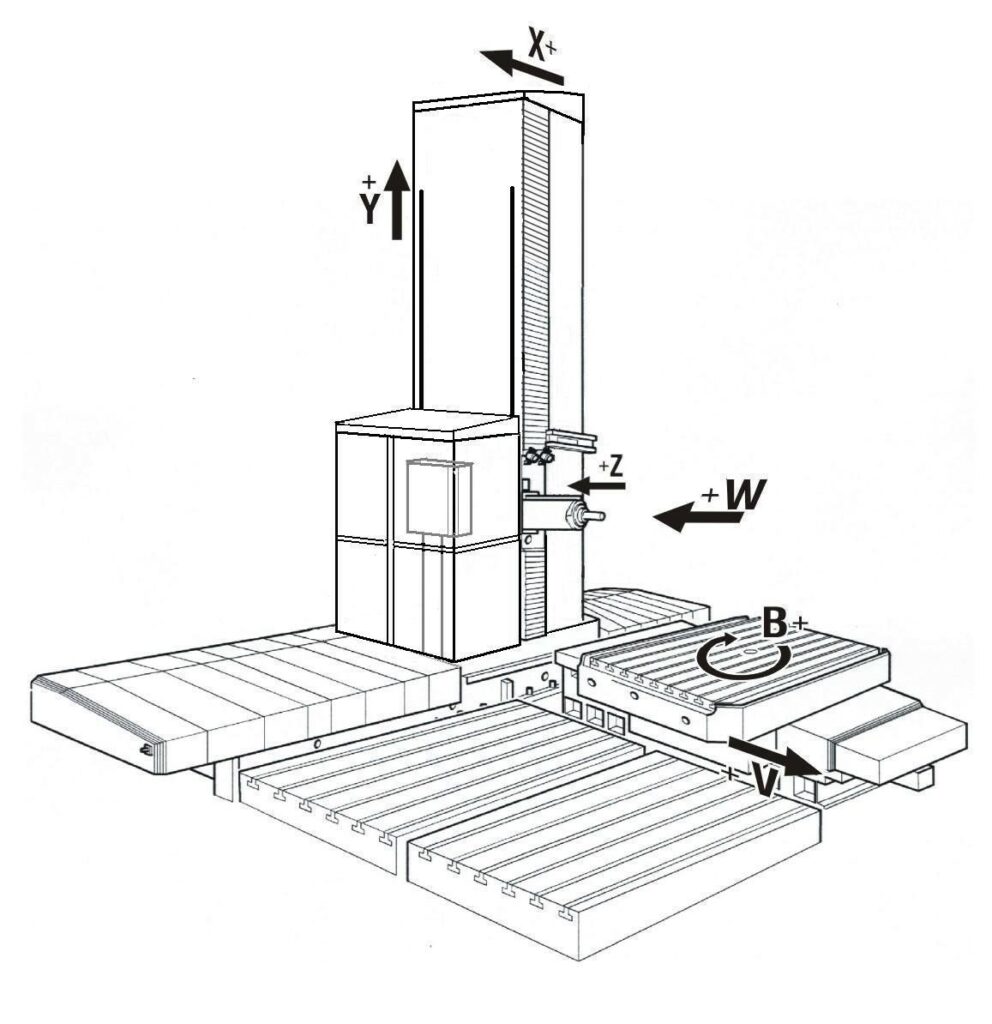

Travels
X – Column longitudinal travel mm 10.000
Y – Headstock vertical travel mm 4.000
Z – RAM stroke mm 1.000
W – Spindle stroke mm 800
Headstock
Work Spindle diameter mm 150
Work spindle speed range Rpm 10-2.500
Main motor power S1/S6 Kw 51/65
Torque on spindle S1/S6 Nm 2.460/3.138
RAM size mm 450 x 450
Feeds
X,Y,Z mm/min 24.000
Rotatory table
Max. Workpiece weight (balanced) Tn 25
Table size mm 3.000 x 2.500
Longidutinal travel mm 2.000
Turning system Continuous rotation
2 engines working in master-slave
CNC

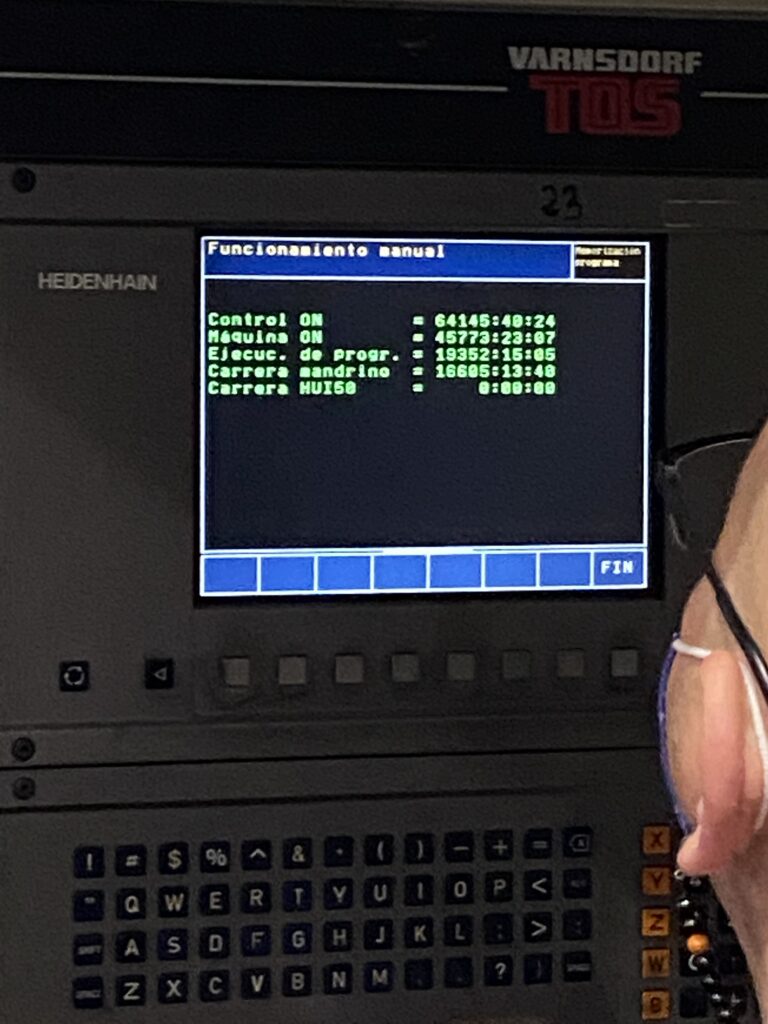

Heidenhain TNC 430
Accesories
·         Automatic tool change 60 pockets
·        Chip conveyor

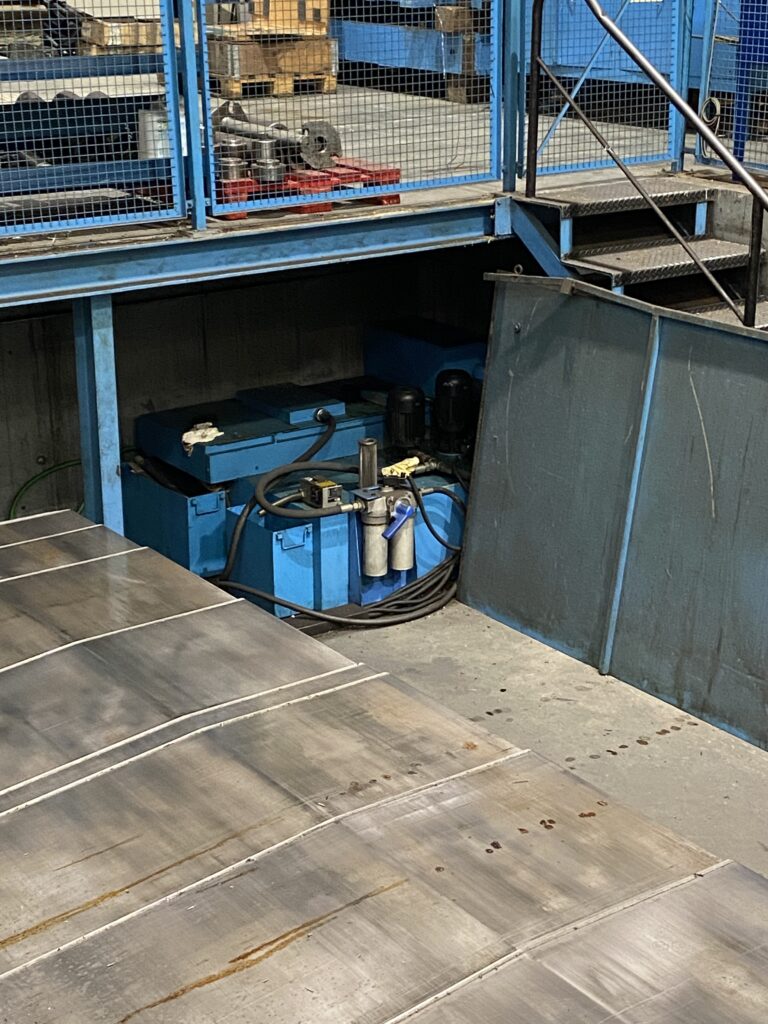

·        Tool cooling 20 bar with with with tank with paper filter

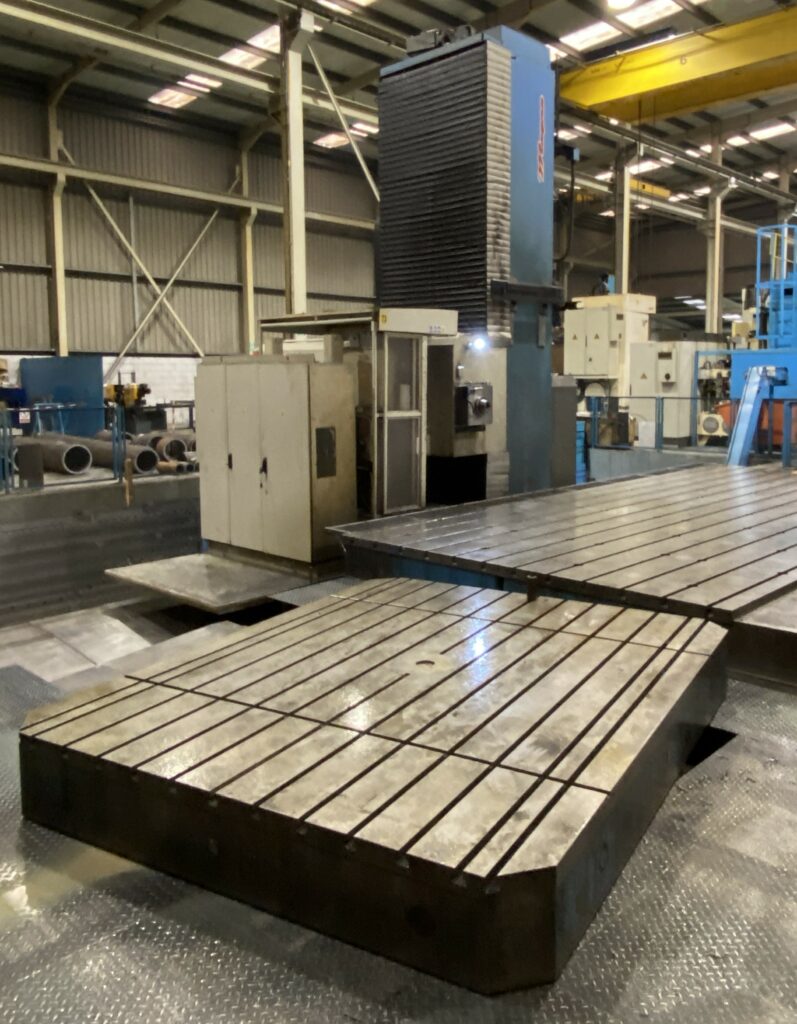

·        4 Floor plates UD 4, 4000 x 1990
·        Preparation for Andrea Head and Automatic head HUI 2,5º x 2,5º
·        CE norm and perimeter fence
Notes
This machine is in excellent condition and it is posible to check it
