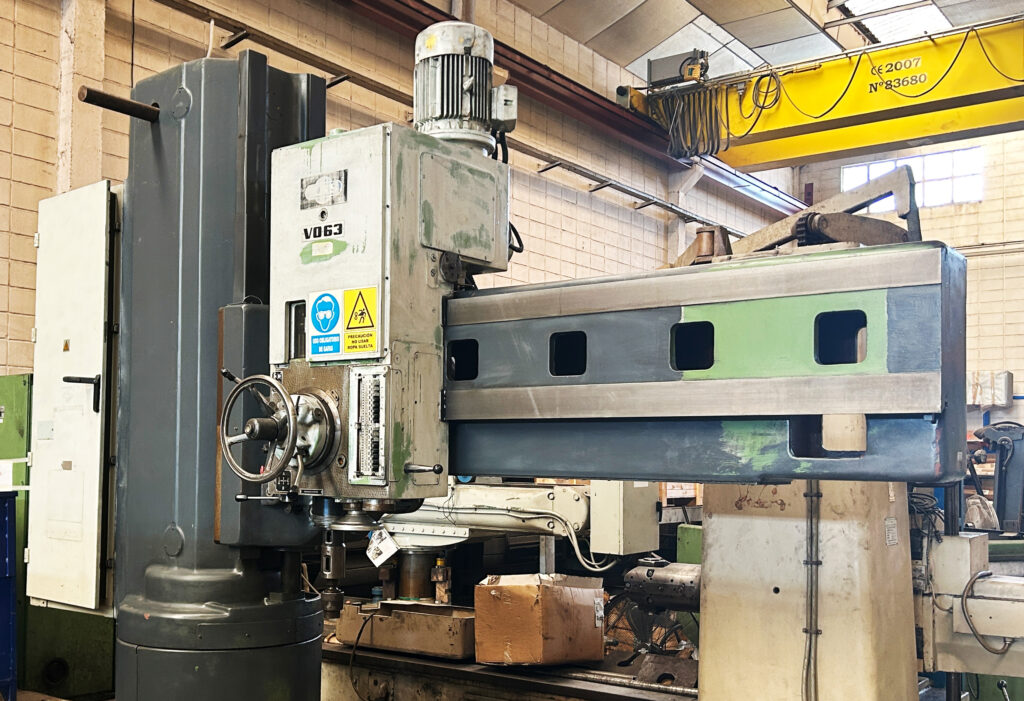

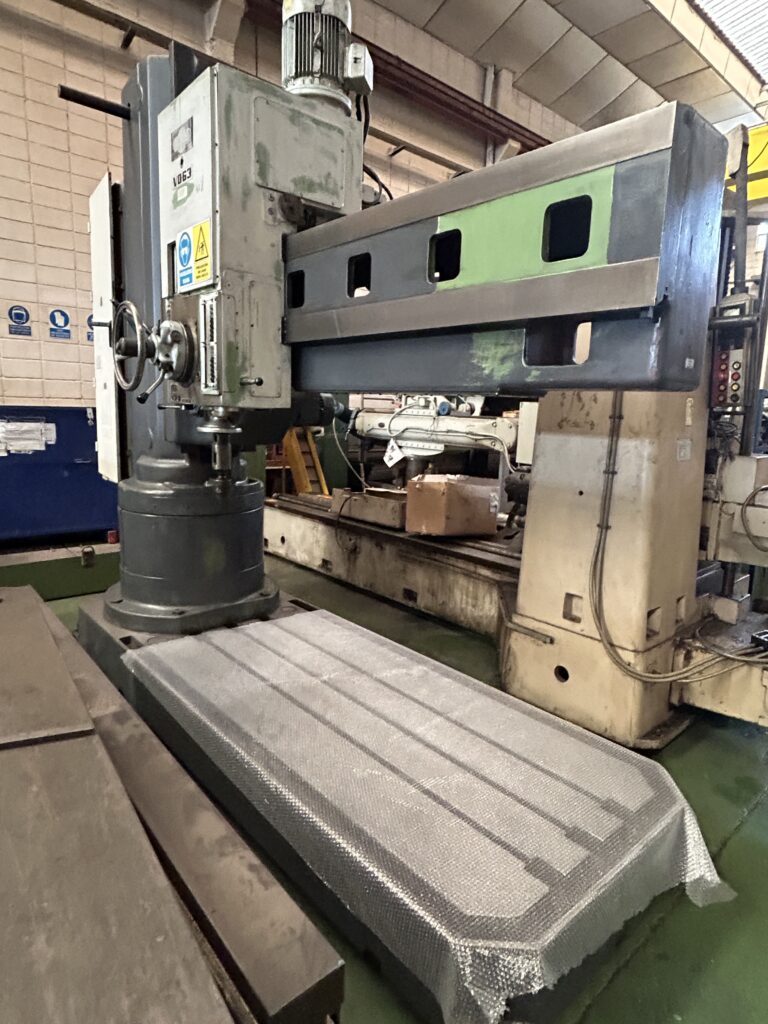

Radial Drilling Machine MAS VO 63

· Ref: 3860
Radial Drilling Machine MAS VO 63
Technical Features
Capacity
Max. motion on the drilling head along the arm mm 2.000
Drilling capacity in steel mm 63
Drilling capacity in grey cast iron mm 90
Max. vertical displacement arm mm 1.865
Tapping capacity in steel M. 60×4
Tapping capacity in grey cast iron M. 80×4
Spindle reach mm 800
Speed range (16) rpm 11-2.500
Number of spindle speeds 16
Main Motor Power Kw 5.5
Speed and feed preselector 20
Dimensions
Length x Width x Height mm 3.700×1.375×4.090
Weight Kg 7.100
