| Technical features |
| Capacity | ||
| Chuck diameter | mm | 1.400 |
| Max. turning diameter | mm | 1.650 |
| Max. workpiece height | mm | 1.150 |
| Carriages | ||
| Max. turning diameter with vertical carriage | mm | 1.650 |
| Max. turning diameter with lateral carriage | mm | 1.400 |
| Pentagonal manual turret | ||
| Cross beam | ||
| Chuck | ||
| Main motor | Kw | 22/30 |
| Loading capacity | Kg | 8.000 |
| Equipment | |

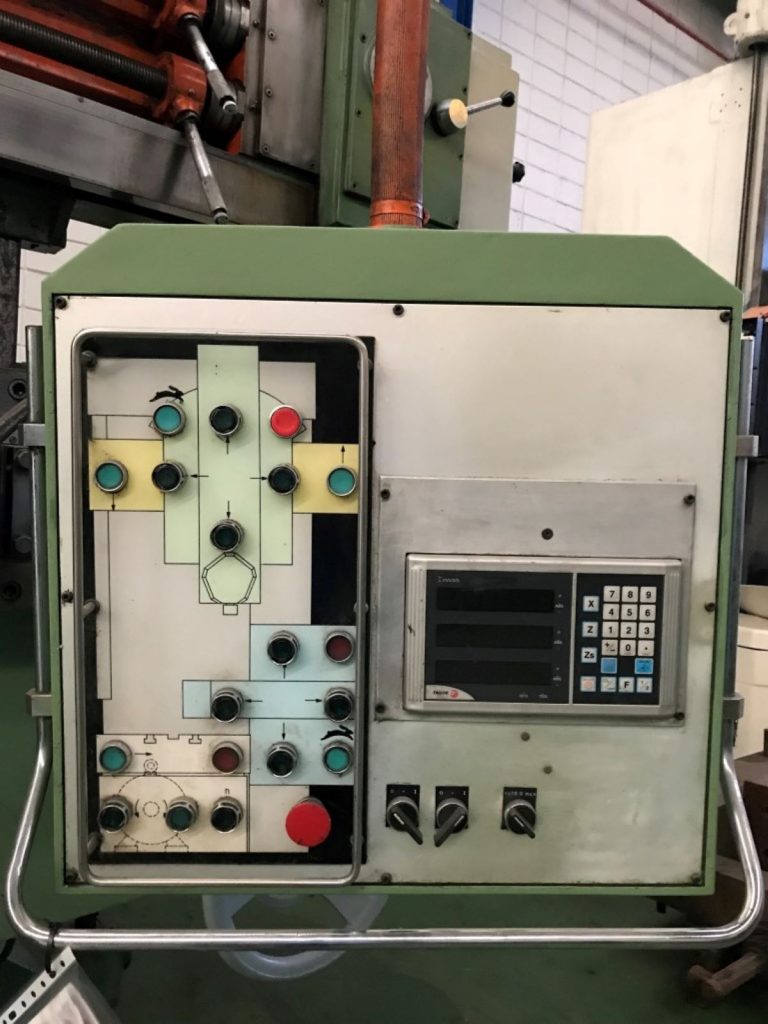

| DRO 3 axis FAGOR | INCLUDED |
| Remarks |
| Guides in perfect conditions |

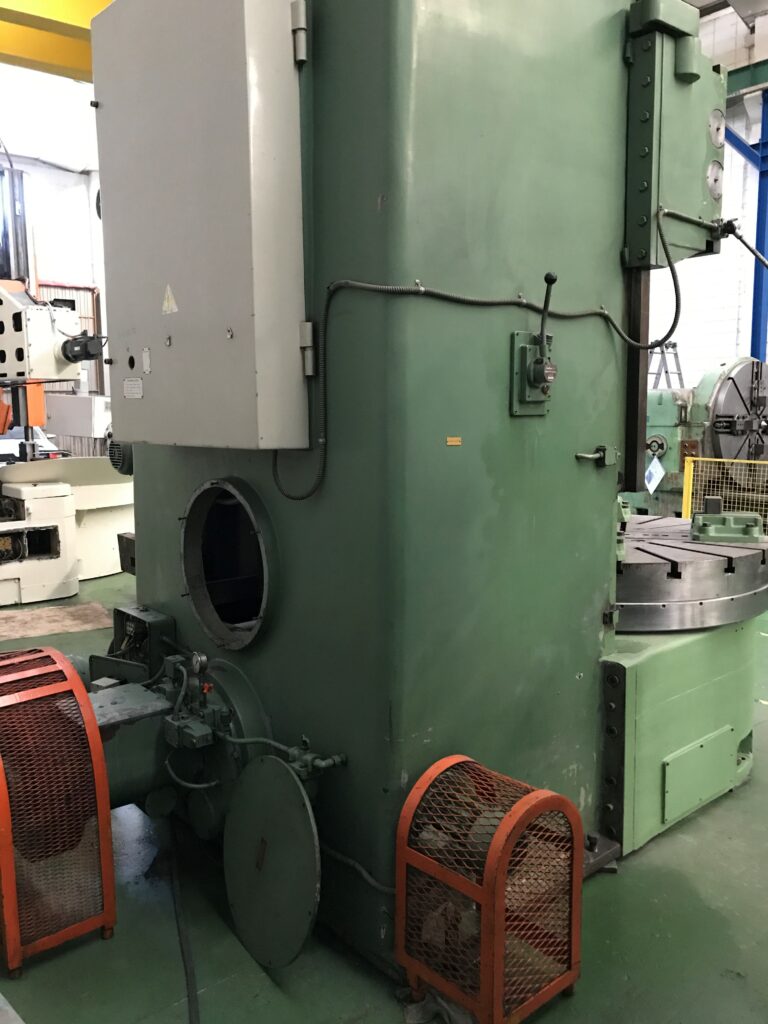

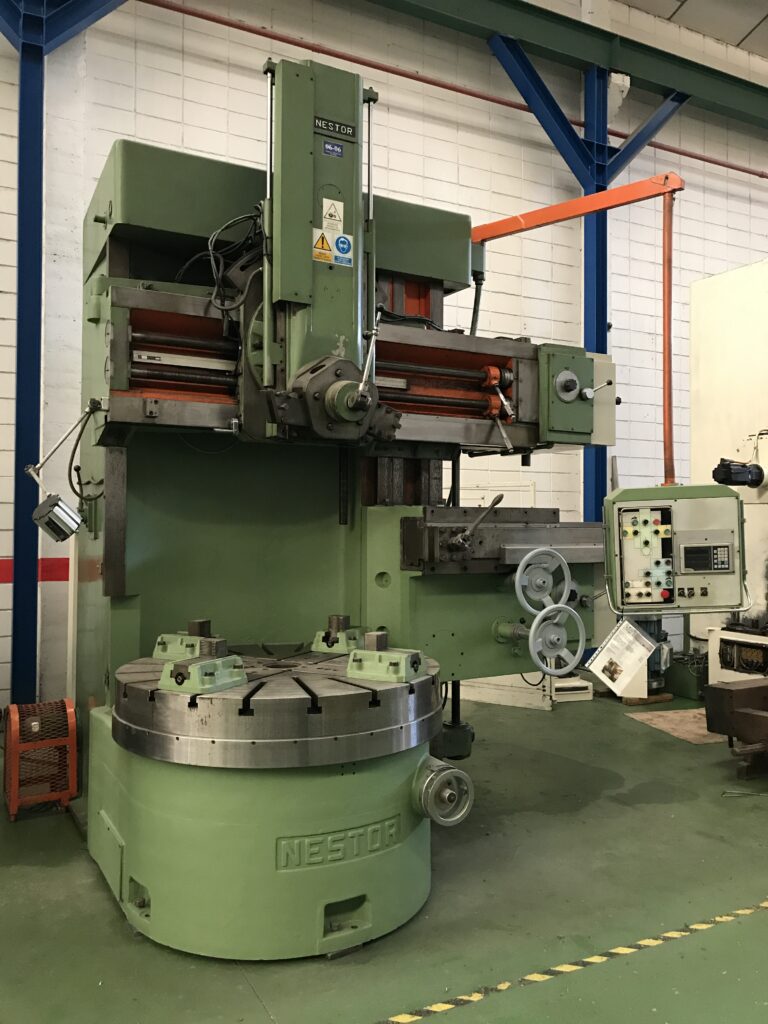

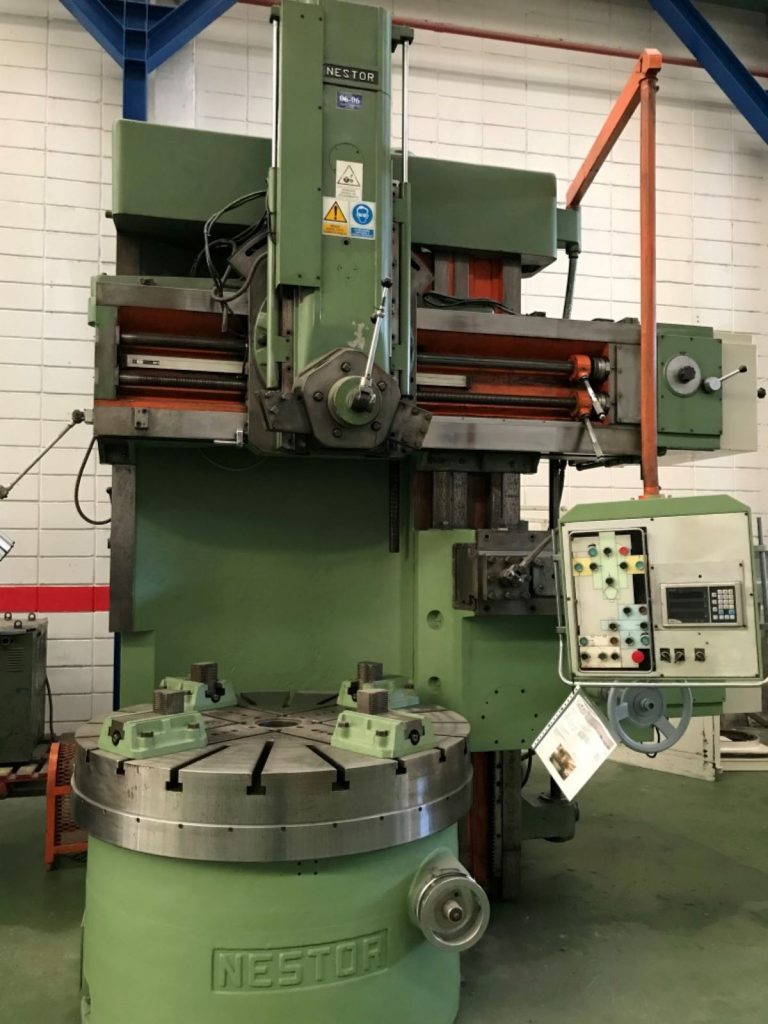

Used vertical lathe Nestor TV 165, with a 1.400 mm diameter chuck, allows turning up to 1.650 mm. Machine equipped with 3 axis DRO Fagor.
You can arrange a visit to inspect the machine through our contact form or calling +34 976 571213
If you need a second hand vertical lathe, contact us. We will take note of your request and offer you the machine that suits your needs at the best price. Request a quote.
We have our own technical service.
